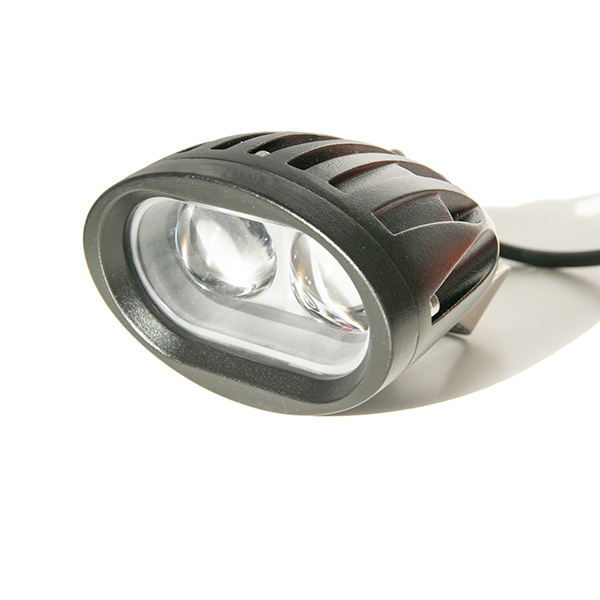

Blue Ex Spot – awareness light

Blue Ex Spot™ is a compact driving path warning system fully ATEX certified to minimise risk for staff working in hazardous areas. There is one model for all Zones.





In Zoned hazardous areas, pedestrians could be working in close proximity to trucks handling flammable materials. Multiple trucks may also be operating.

Blue ex Spot - ATEX awareness spotlight for lift trucks

Blue EX Spot™ increases safety where visibility is poor, such as warehouse aisles or crossings where IBCs and drums containing flammable material are handled.

Blue EX Spot™ can be used where spillage or accidental release of flammable material may create an explosive atmosphere. Suitable for production applications or facilities storing flammable material such as chemicals, solvents, waste, paints, whisky, foodstuffs and more.

Readily available for installation on any existing Pyroban equipment (or other EX manufacturers) in the field and new orders (factory-fitted). Fitting must be conducted by competent EX trained engineers.

You may also be interested in our ATEX compliant red perimeter light – Red Ex Line™.





READY TO FIT, EXPLOSION PROOF AWARENESS LIGHTS FOR ATEX TRUCKS

The compact Blue EX Spot is easily fitted by competent EX trained engineers and can be used in Zone 1, 2, 21 and 22 hazardous areas.
Blue EX Spot is much smaller than previous solutions.



THE SPOTLIGHT

  • 2 x 5W LEDs
  • Weight: 0.37kg
  • 50,000 hour light life span
  • IP6X
  • Diecast aluminium construction
  • The lights may be connected to a 12-48V DC source
  • Dimensions: W 97.5mm, H 64.2mm, D75mm

THE EXPLOSION PROTECTION

  • ATEX 2G/D compliant for operations in Zone 1, 2, 21 & 22 hazardous areas
  • Ambient temperature -20 to +40degC
  • EX II 2GD | Ex mb op is IIC T4 Gb | Ex mb op is IIIC T135degC Db
  • Protection of the electronics is provided by optical grade encapsulation
  • The lights are protected against over temperature caused by component failures. There is no potential ignition hazard caused by the optical radiation from the LED array
